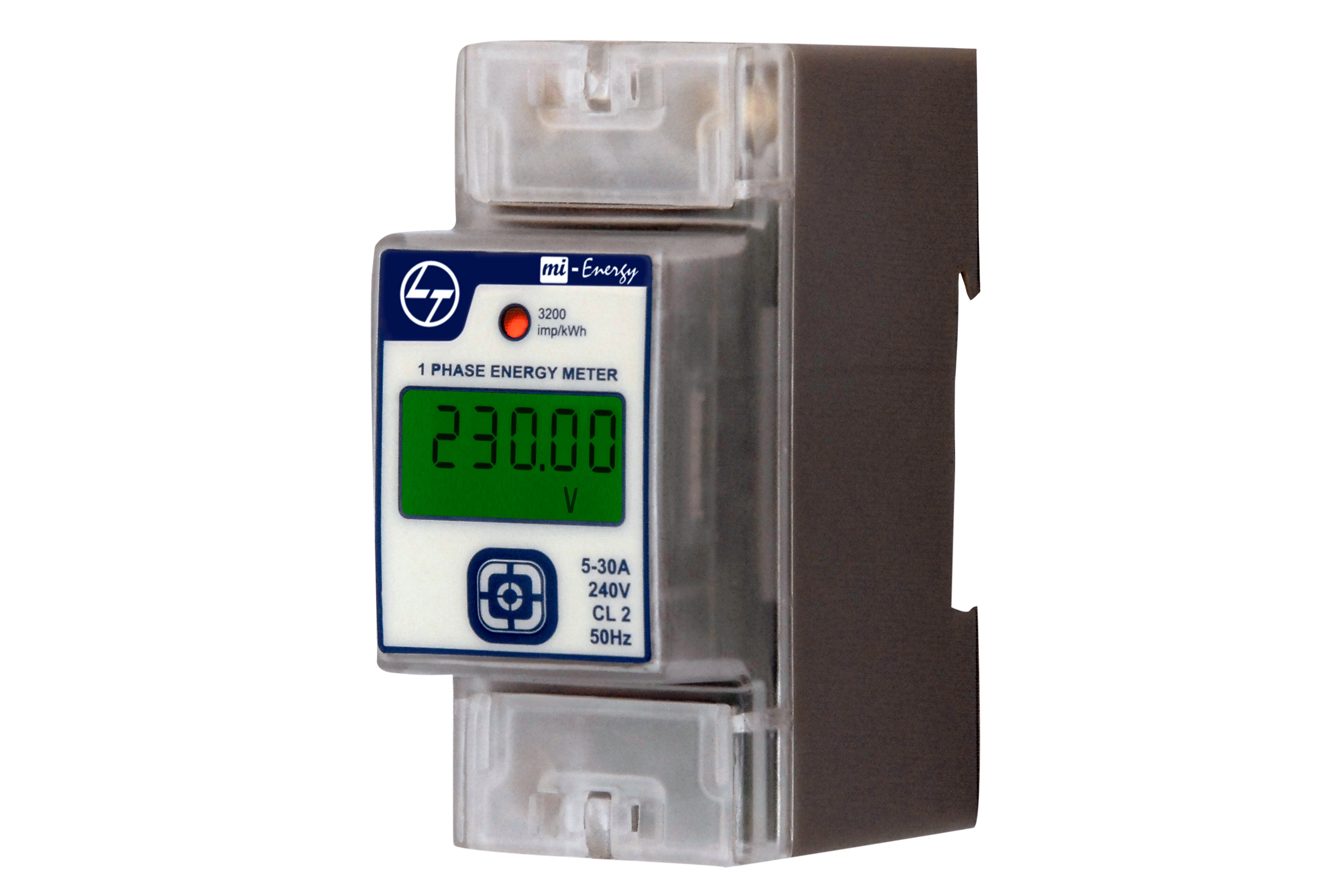

DIN Rail Mounted Meter – mi-Energy

For energy monitoring of loads in distribution boards. These are primarily used for sub-metering purposes.

Parameters:

1 Phase -Voltage, Current, kW, kWh, 3 Phase-Voltage, Current, kW, kWh + PF, kVA, kVAr, MD

Salient features

• Accuracy Class 1 as per IEC 62053-21
• The LCD display for clear display of parameter values
• Whole current operated. 5-40A for Single Phase and 10-60A for Three Phase
• Displays Push-to-Push consumption, Daily, Weekly, Monthly consumption
• Push button for parameter scrolling
• Terminal covers to avoid direct contact of the supply terminals along with the sealing provision
• Energy recording at low currents
• Pulse output LED available
• Reverse current indication for three phase
• Compact size and easy mounting
• Additional RS485 module for communication over RS485 Modbus RTU protocol
