| Test Parameters | Specification |
|---|---|
| Rated Voltage |
240V AC, 110V AC, 24V AC/DC, 12V DC |
| Color Temperature | 6000° K - 7000°K |
| IP Protection | IP 54 |
| Housing Material | ABS |

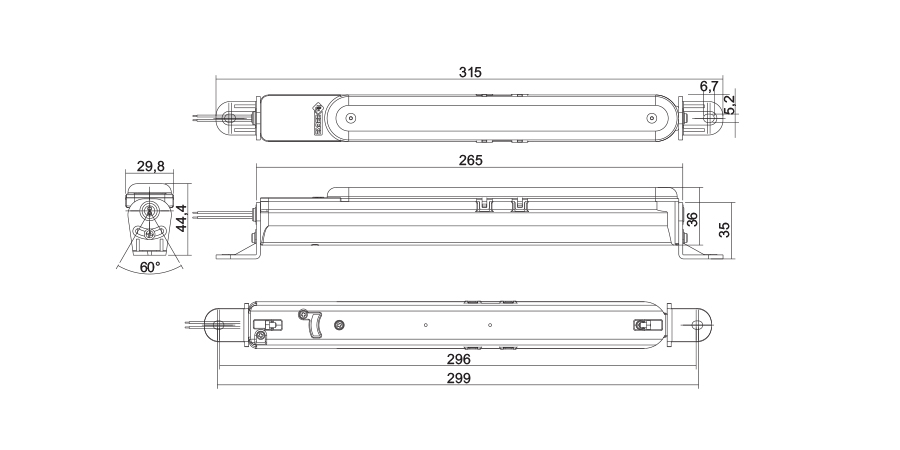

| Mounting & Centre Distance | Magnet, Screw M5 X 25, CD : 299mm |
| Lens Polycarbonate | Clear |
| Length x Width x Height | 315 x 30 x 45 mm |
| Features | Swivel/Magnet/Cascading |
| Lux @1 meter | 90 |
| Operating Voltage | -20% to +10% of Rated Voltage |
| EMI-EMC | 4kKV |
| Type of LED | 5 mm Th. Hole LEDs |
| No. of LED | 24 |
| Power Consumption | <3W |
| Available Colours | White / Black / Grey |
| Life / Warranty | 0.1 |
| Operating Frequency | 50 / 60 Hz |
| Operating Temperature | -25° C to 65° C |
| Storage Temperature | -30° C to 70° C |
| LED Arrangement | Cluster |
| Surge Test | 4kV |
| Hv Test for 60 sec. | 2.5kV |
| International Approvals | CE |
