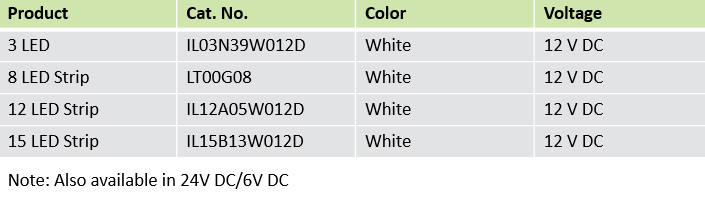

| Product | 8 LED PCB | 12 LED PCB | 15 LED PCB |
|---|---|---|---|
| Rated Voltage | 12V DC | 12V DC | 12V DC |
| Limit of Operating Voltage | -20% to +10% of Rated voltage | -20% to +10% of Rated voltage | -20% to +10% of Rated voltage |
| No. of LED’s | 5 mm Through Hole 8 LEDs | 5 mm Through Hole 8 LEDs | 5 mm Through Hole 8 LEDs |
| Colours Available | White | White | White |
| Life / Warranty | 50,000 Hours/24 Months* | 50,000 Hours/24 Months* | 50,000 Hours/24 Months* |
| Operating Temperature | -25°C to 65°C | -25°C to 65°C | -25°C to 65°C |
| Storage Temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| HV Test for 60 sec. | 2kV | 2kV | 2kV |
| Power Consumption | < < 0.6W | < < 0.6W | < < 0.6W |
Emergency Light - LED strips
The emergency light LED strips by Esbee Electrotech LLP for elevators are RoHS compliant and have passed the surge test. These emergency LED strips are the same as a circuit board used in an emergency. In case of any failure in an elevator, these LED strips can be used.

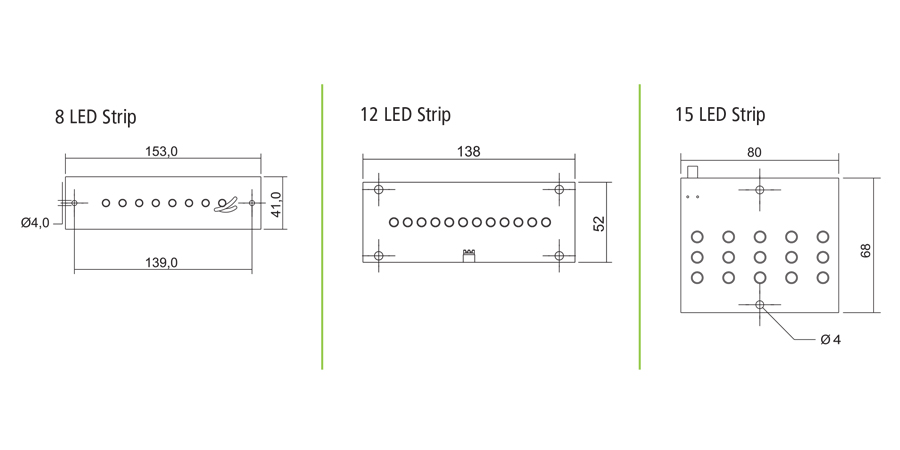

With the three variants of LED strips—8 LED PCB, 12 LED PCB, and 15 LED PCB—the LED strips have an approximate life of 24 months.
Working on low power consumption, these LED strips by Esbee can work in temperatures between -20 °C and 70 °C.
It has a rated voltage of 12 volts DC.
