| Test Parameters | Specification |
|---|---|
| Rated Voltage |
240V AC, 50Hz |
| Power Factor | >0.9 |
| Eficiency(%) | >85% |
| Color Temperature | 4000k, ±250 |
| CRI | 80 |
| IP Protection | IP 20 |
| Lux @1 meter | 500 lux (1600 lm) |
| Limit of Operating Voltage | -20% to+10% of Rated voltage |
| EMI-EMC | Comply |
| Type of LED | COB LED |
| Power Consumption | 14W, ±0.5W |
| Available Colours | As per required |
| Operating Temperature | -25° C to 65 °C |
| Storage Temperature | -30°C to 70°C |
| Surge Test | 2 KV |
| Hv Test for 60 sec. | 2KV |
| Input Current | 60mA |
| Rated Life | 25000 to 30000 hrs. |
| TP Point | 70°C |
| I/P Cable | 2 Core 0.5sqmm. Wire |

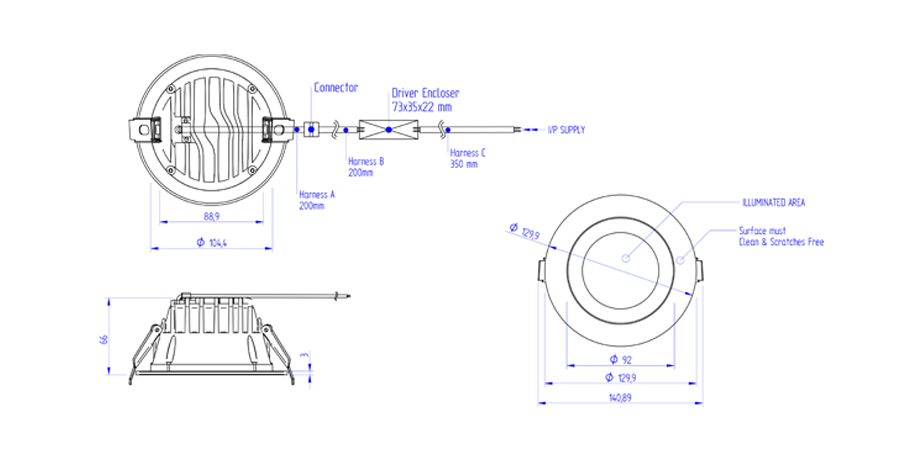

| Dimensions (in mm) | Cut Out- 63, OD- 92, H- 53 |
| Availability of Heat Sink | Metal Enclosure as Heat Sink |
