| Test Parameters | Specification |
|---|---|
| Input voltage AC @50-60Hz | 150 - 310V AC |
| Input Power(W) | 9 |
| Power Factor | 0.9 |
| Eficiency(%) | > 85 |
| Depreciation | 20% max after 50,000 hrs |
| Color Temperature | 2500°K - 6500°K based on requirement |
| Maximum Operating Case Temp. (TC) | 75ºC |
| CRI | Ra = 87 |
| Lumens | 750* |
| Over Voltage Protection | 340V (2 Hrs. working) |
| Surge Protection | 2KV (L-L) |
| General Requirements and Safety | En61347 - 2 - 13 |
| Operating ambient temp. Range | 0 - 50ºC |
| Housing Material | Aluminum + PC cap + End cap |
| Input Connection | 2 Core 0.75mm sq wire (Red + Black) |
| Type | Square/Gen next |
| Life / Warranty | 25,000 - 30,000*** |

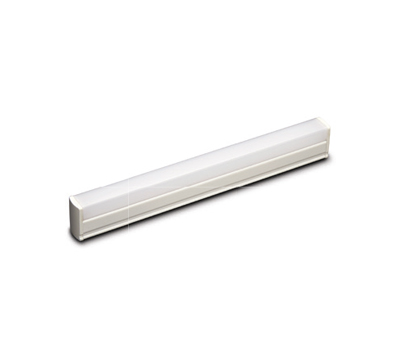

Tubelights
Tube lights for elevators by Esbee Electrotech LLP are working on the principles of environmentally friendly guidelines. It is available in white and warm white, and in 1ft, 2 ft, and 4 ft sizes. Its distinctive and appealing design, combined with the exceptional brightness of tube lights, has made it the best choice for an elevator.
The tube light for the elevator lightning solution comes with a square batten LED tube light available with cascading features.
This product by Esbee is made in India.
It is certified for industrial use and has an operating temperature range of 0 to 50 degrees Celsius.
