| Test Parameters | Specification |
|---|---|

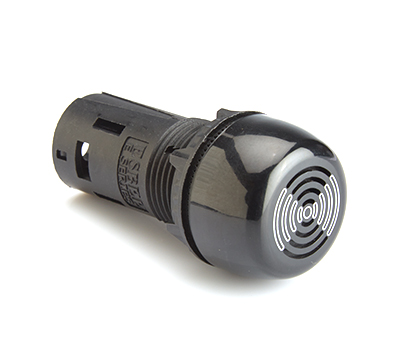

| Product | Panel Mounted Buzzer |
| Rated Voltage |
12V AC/DC, |
| SPL (Sound Pressure Level) | >80dB |
| Operating Voltage | -20% to + 10% of rated voltage |
| Available Colours | Black |
| Life / Warranty | >0.01 Million burning hours/24 months* |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | -25°C to 65°C |
| Storage Temperature | -30°C to 70°C |
| Wire Termination Capacity | Min. 0.5 mm2, 1.5 - 2.5 mm2 |
| Terminal Torque | 0.8 Nm |
| Surge Test | 2kV |
| Hv Test for 60 sec. | 2.5kV |
| Degree of Protection | Above Panel: IP55 For Terminal: IP20 |
| International Approvals | CE, UL |
