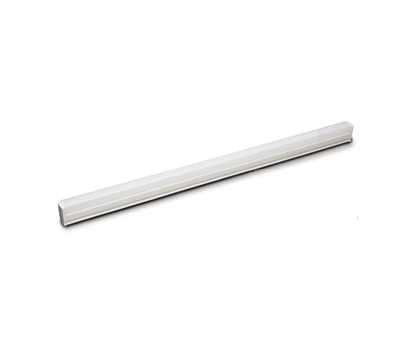

600 MM

FEATURES

Test Parameters	Specification
Input voltage AC @50-60Hz	150 - 310V Ac
Input Power(W)	12
Power Factor	0.9
Eficiency(%)	> 85
Depreciation	20% max after 50,000 hrs
Color Temperature	2500°K - 6500°K based on requirement
Maximum Operating Case Temp. (TC)	75ºC
CRI	Ra = 87
Lumens	990*
Over Voltage Protection	340V (2hrs working)
Surge Protection	2KV (L-L)
General Requirements and Safety	En61347 - 2 - 13
Operating ambient temp. Range	0 - 50ºC
Housing Material	Aluminum + PC cap + End cap
Input Connection	2 Core 0.75mm sq wire (Red + Black)

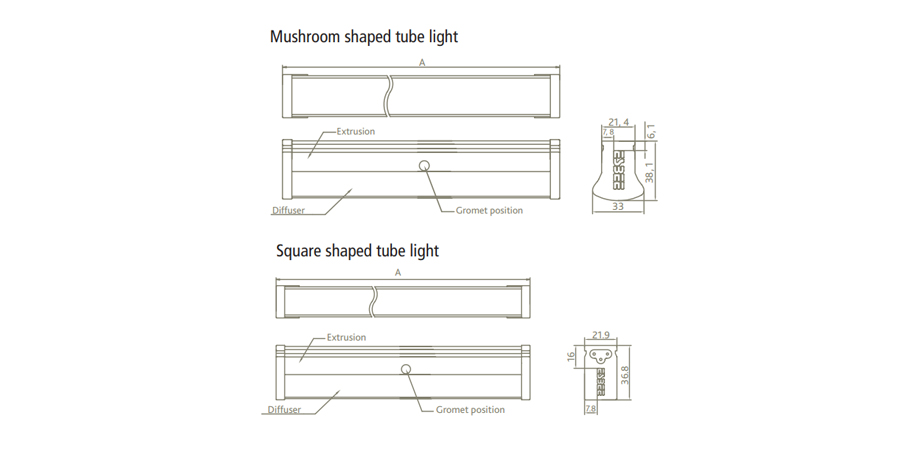

Type	Square / Gen next
Life / Warranty	25,000 - 30,000***

Note: ***LED life is standard test condition.
*Lumens measured for all varient in standard test condition.
