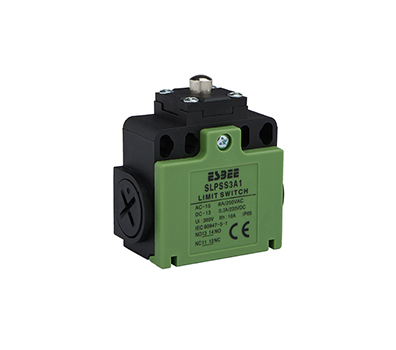

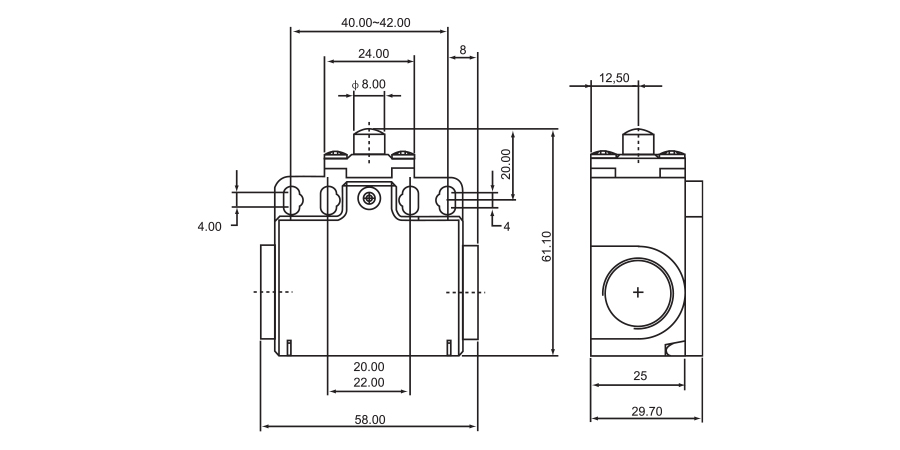

| Characteristics | |
|---|---|
| Operation speed | 0.5mm-50cm/sec |
| Operating frequency | Mechanical: 120 operations/minute Electrical: 30 operations/minute |
| Contact resistance | 25mΩ max. (initial value) |
| Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Humidity | <95% RH |
| Utilization Category for Limit Switches | ||
|---|---|---|
| Kind of Current | Category | Typical Application |
| Alternative Current | AC-15 | Control of Electromagnetic Load > 72 VA |
| Direct Current | DC-13 | Control of Electromagnets |
| Contact Rating Designation Based on Utilization Catagories | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Utilization Catagory | Conventional Enclosed Thermal Current | Rated Operational Current (A) at Rated Operational Voltage | VA Ratings | ||||||
| Resistance Load | 120 V | 240 V | 380 V | 480 V | 500 V | 600 V | Make | Break | ||
| AC-15 | 10 | 6 | 3 | - | 7200 | 720 | ||||
| Direct Current | 125V | 250 V | 400 V | 500 V | 600 V | Make | Break | |||
| P600 | DC-13 | 5 | 1.1 | 0.55 | 0.31 | 0.27 | 0.2 | 138 | 138 | |
