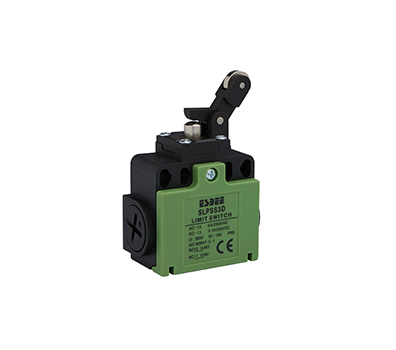

SLPSS3D

FEATURES

Characteristics
Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute Electrical: 30 operations/minute
Contact resistance	25mΩ max. (initial value)
Dielectric strength	1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
	1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration	10-55Hz, 1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Humidity	<95% RH
Warranty	24 Months*

Utilization Category for Limit Switches
Kind of Current	Category	Typical Application
Alternative Current	AC-15	Control of Electromagnetic Load > 72 VA
Direct Current	DC-13	Control of Electromagnets

Contact Rating Designation Based on Utilization Catagories
Designation	Utilization Catagory	Conventional Enclosed Thermal Current	Rated Operational Current (A) at Rated Operational Voltage						VA Ratings
Resistance Load			120 V	240 V	380 V	480 V	500 V	600 V	Make	Break
AC-15	10	6	3	-	7200	720
Direct Current			125V	250 V		400 V	500 V	600 V	Make	Break
P600	DC-13	5	1.1	0.55		0.31	0.27	0.2	138	138
