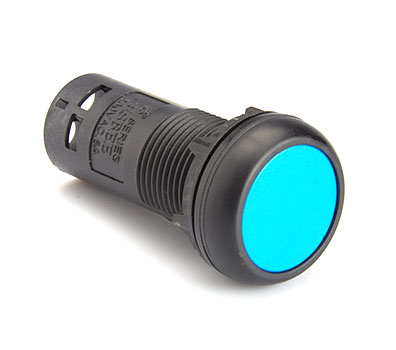

FLUSH HEAD

FEATURES

Test Parameters	Specification
	Supply	IEC - 60947-5-1	UL-508	ITH/Thermal Current
Utilization Category	AC	AC-15	A600	10A
Utilization Category	DC	DC-13	P300
Contact	NO and NC
Rated Voltage	230V AC	120V AC	24V DC
Rated Current	6A	6A	1.5A
Frequency	50 - 60 Hz
Electrical Life for Contact / Warranty	1 Million Cycle/24 Months*
Rated Insulation Voltage	600 VAC
Terminals	Suitable for flexible or solid conductors from 2x1 mm2 to 2x2.5 mm²
Current Carrying material	Brass
HV Test for 60 Sec.	2.5KV (All Terminals Shorted Together)
Rated Insulation Voltage	600 VAC
Terminals	Suitable for flexible or solid conductors from 2x1 mm2 to 2x2.5 mm²
Current Carrying Material	Brass
Contact material	AgNi
Contact Type	Make & Break
Contact Material	AgNi
Contact Resistance	20 MΩ
mV drop at 16 A DC	200 mV
Type	Non Illuminated
Function	Push, Push - Push, Push turn, Selector

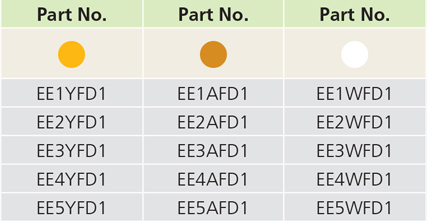

Available Colours	Red / Green / Black / Yellow / White / Blue / Amber
Disposition of Contact
International Approvals	IEC, UL, NEMA 1, 2, 3R
