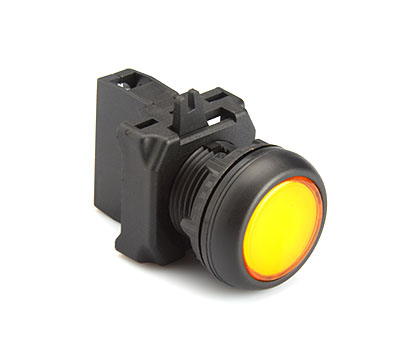

Flush Head Actuator Illuminated

FEATURES

Test Parameters	Specification
Product	Gen Next LED Actuators

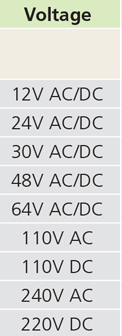

Rated Voltage	12 V AC/DC, 24 V AC/DC, 30 V AC/DC, 48 V AC/DC, 64 V AC/DC, 110 V AC, 110 V DC, 240 V AC, 220V DC
Operating Voltage	-20% to +10% of rated voltage
Type of LED	Side View SMD LED’s
Available Colours	Red / Green / Yellow / Amber / Blue / White
Life / Warranty	0.1 Million burning hours/24 Months(At standard operating conditions)
Operating Frequency	50 / 60 Hz
Operating Temperature	-25°C to 65°C
Storage Temperature	-30°C to 70°C
Wire Termination Capacity	0.5 mm², 1.5 - 2.5 mm²
Terminal Torque	0.8 Nm
Low Voltage Glow Protection	Available
Surge Test	2KV
Hv Test for 60 sec.	1.5KV
Degree of Protection	Above Panel: IP65 For Terminals: IP20
International Approvals	CE, UL
