| Test Parameters | Specification |
|---|---|

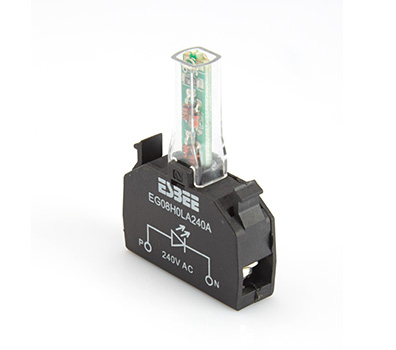

| Product | Gen Next LED Actuators |

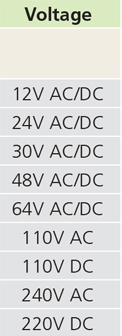

| Rated Voltage |
12 V AC/DC, 24 V AC/DC, 30 V AC/DC, 48 V AC/DC, 64 V AC/DC, 110 V AC, 110 V DC, 240 V AC, 220V DC |
| Operating Voltage | -20% to +10% of rated voltage |
| Type of LED | Side View SMD LED’s |

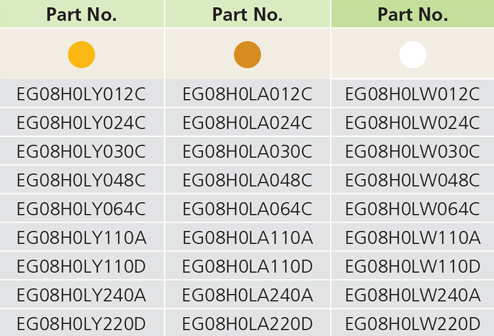

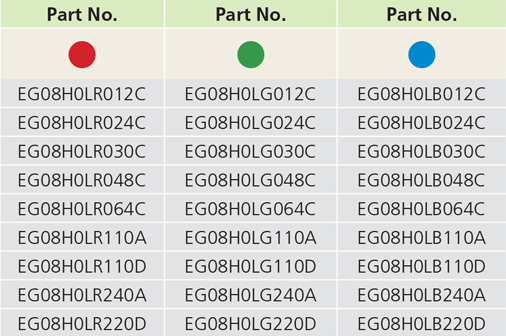

| Available Colours | Red / Green / Yellow / Amber / Blue / White |
| Life / Warranty | 0.1 Million burning hours/24 Months** |
| Operating Frequency | 50 / 60 Hz |
| Operating Temperature | -25°C to 65°C |
| Storage Temperature | -30°C to 70°C |
| Wire Termination Capacity | 0.5 mm², 1.5 - 2.5 mm² |
| Terminal Torque | 0.8 Nm |
| LVGP | Available |
| Surge Test | 2KV |
| Hv Test for 60 sec. | 1.5KV |
| Degree of Protection | For Terminals: IP20 |
| International Approvals | CE, UL |
