FEATURES

  • Unique & Compact Design
  • Screw Less , quick & Easy Assembly of contact block
  • IP 65 product ( After mounting on panel )
  • Stackable design of contact block
  • Snap mounting with contact block EC1C & EC2C
Environmental Rating
Operating Temperature -25°C to 65°C
Storage Temperature -30°C to 70°C
IP Rating IP65 above panel (As per IEC/EN -60529) & IP20 for Terminals NEMA 1,2,3,4,4X class 12 & 13
RoHS Compliance

Yes

Mechanical Life for Actuators
Momentary (Push Button with Push Function) 1 million Operation
Emergency Stop (Turn to Release) 0.1 million Operation

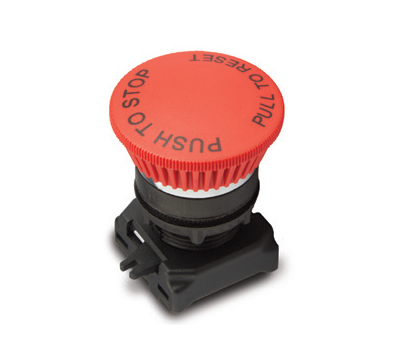

Emergency Stop (Push Pull Type) 0.5 million Operation
Selector 0.5 million Operation
