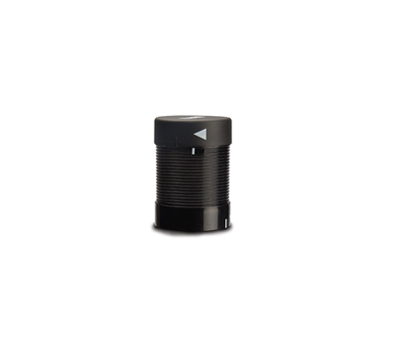

BUZZER LENS SELECTION

FEATURES

Test Parameters	Specification
Product	Buzzer Lens Selection
Outer Diameter	Ø50mm
Buzzer Colour	Black
Buzzer Sound Level	80dB ± 5dB at 1 meter
Sounding Mode	Continuous & Intermittent
Voltage Range	12V AC/DC, 24V AC/DC, 110V AC,240V AC
Limit of Operating Voltage	±10% of rated voltage
Operating Torque	0.8 Nm
Wire Terminals	Wire size (AWG) 20-16 / 0.5 mm²
Flash Rate (Time /Min)	±5% 60
Rated Current	40-60mA for 12V AC/DC & 24V AC/DC 10-20mA for 110V AC & 240V AC
Life / Warranty	0.1 Million burning hours/24 Months*
Operating Frequency	50 / 60 Hz
Operating Temperature	-25°C to 65°C
Storage Temperature	-30°C to 70°C
Surge Test	2 KV
Hv Test for 60 sec.	1.5 KV
Degree of Protection	IP65 & NEMA (1 \| 2 \| 3 \| 3R \| 4 \| 4X \| 12 \| 13)
International Approvals	CE, UL
