| Test Parameters | Specification |
|---|---|
| Product | Tower Light |
| Outer Diameter | Ø50mm |
| Luminous mode | Continuous, Blinking & Revolving |
| Buzzer Colour | Black |
| Buzzer Sound Level | 80dB ± 5dB at 1 meter |
| Sounding Mode | Continuous & Intermittent |
| Voltage Range | 12V AC/DC, 24V AC/DC, 110V AC, 240V AC |
| Limit of Operating Voltage | ±10% of rated voltage |
| Operating Torque | 0.8 Nm |
| Wire Terminals | Wire size (AWG) 20-16 / 0.5 mm² |
| Flash Rate (Time /Min) | ±5% 60 |
| Rated Current | 40-60mA for 12V AC/DC & 24V AC/DC 10-20mA for 110V AC & 240V AC |
| Type of LED | SMD |
| Available Colours | Red / Green / Amber / Blue / White / Yellow |
| Life / Warranty | 0.1 Million burning hours/24 Months* |
| Operating Frequency | 50 / 60 Hz |
| Operating Temperature | -25°C to 65°C |
| Storage Temperature | -30°C to 70°C |
| Surge Test | 2 KV |
| Hv Test for 60 sec. | 1.5 KV |
| Degree of Protection | IP65 & NEMA (1 | 2 | 3 | 3R | 4 | 4X | 12 | 13) |
| International Approvals | CE, UL |
.jpg)

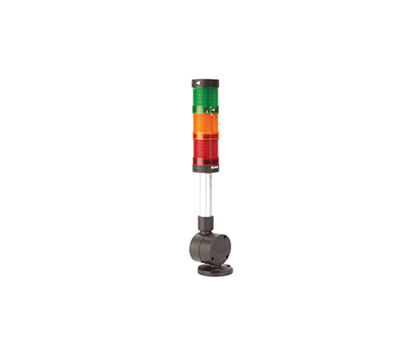

Tower Lights
Tower lights for industrial applications are used for signalling devices. Tower lights by Esbee Electrotech LLP are available with different variants and customisation options. This tower light has a very unique design and comes with up to 4 LED light stacks.
The tower lights have different mounting options as per the requirement of the customer, such as L clamp, wall mounted, Base mounted and swivelling base.
Tower lights by Esbee come with the option of adding a buzzer for enhanced efficiency as a signalling device.
You can choose colours and set the combination of tower lights according to your preference.
