SINGLE

FEATURES

Test Parameters	Specification
Degree of Protection	IP 65
Safety	Fully insulated to hose electrical & electronic equipment w.r.t. protection against electric shock.
Material	Bottom Cover: Tough, Impact resistant & fire retardant ABS. Top Cover: Tough, Impact resistant & fire retardant ABS. Gasket: Nitrile rubber, which is good resistant to Oil & acids. Screws: Half threaded Self tapping Cold Forged Screws with blacodising.

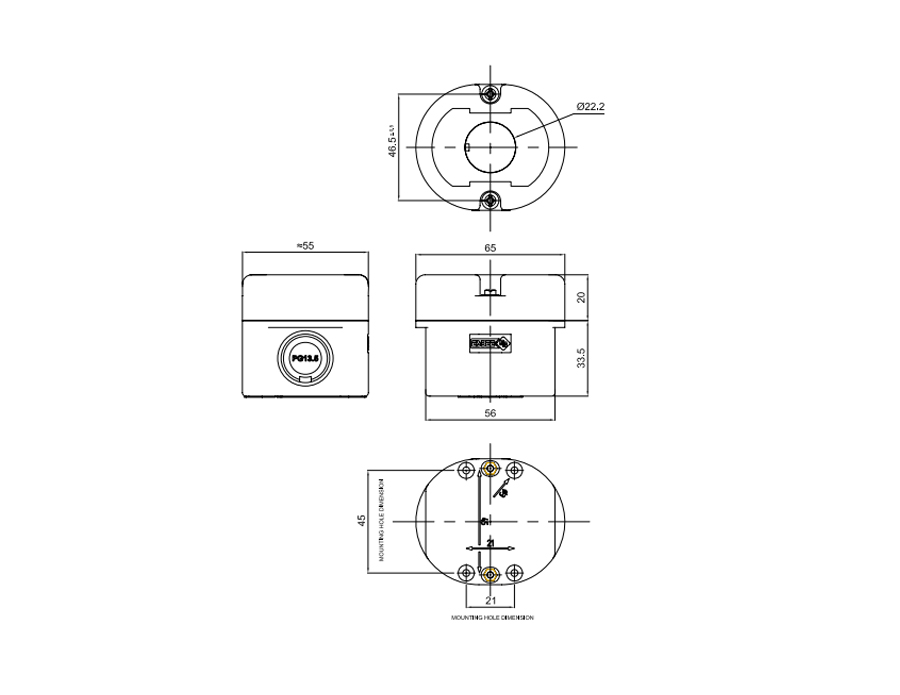

Single	65x55x33
Two	100x55x53
Three	134x55x53
Four	NA
Five	NA
Eight	305x55x53
Screw Size for Wall Mounting	M3.5 mm Insertion of screws directly through base cover.
Temperature Range	Long term exposure to temperatures above 70° C should be avoided. No significant change in impact strength is noticed up to -20° C.
Mounting	M3.5 mm Insertion of screws directly through base cover.
