FIVE WAY

FEATURES

Test Parameters	Specification
Operating Temperature	-25°C to 65°C
Storage Temperature	-30°C to 70°C
Degree of Protection	IP 65
Safety	Fully insulated to hose electrical & electronic equipment w.r.t. protection against electric shock.
Material	Bottom Cover: Tough, Impact resistant & fire retardant ABS. Top Cover: Tough, Impact resistant & fire retardant ABS. Gasket: Nitrile rubber, which is good resistant to Oil & acids. Screws: Half threaded Self tapping Cold Forged Screws with blacodising.
Single	75 x 75 x 56
Two	127 x 75 x 56
Three	160 x 75 x 56
Four	215 x 75 x 70

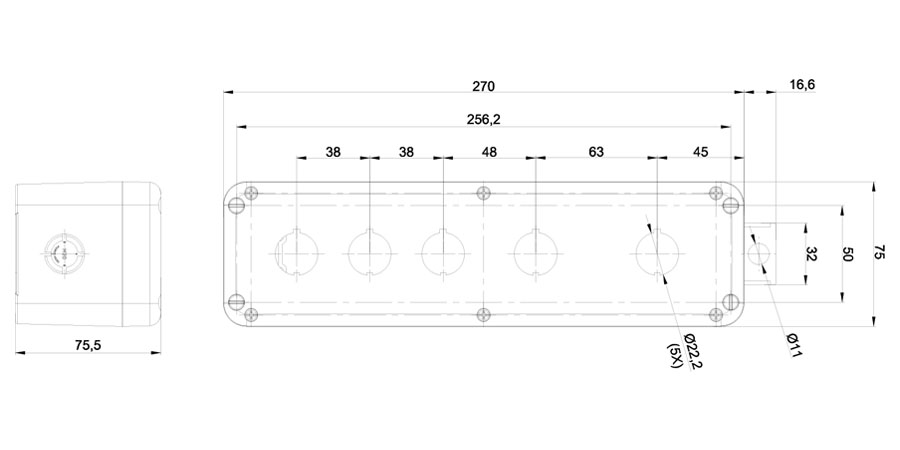

Five	270 x 75 x 71
Eight	NA
Screw Size for Wall Mounting	M4 mm Insertion of screws directly through base cover.
Temperature Range	Long term exposure to temperatures above 70° C should be avoided. No significant change in impact strength is noticed up to -20° C.
Mounting	M4 mm Insertion of screws directly through base cover.
