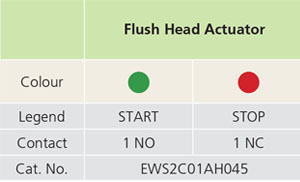

flush head

FEATURES

Test Parameters	Specification
Safety	Fully insulated to hose electrical & electronic equipment w.r.t. protection against electric shoc
Material	Bottom Cover : Tough, Impact resistant & fire retardant ABS. Top Cover : Tough, Impact resistant & fire retardant ABS. Gasket : Nitrile rubber, which is good resistant to Oil & acids. Screws : Half threaded Self tapping Cold Forged Screws with blacodising.

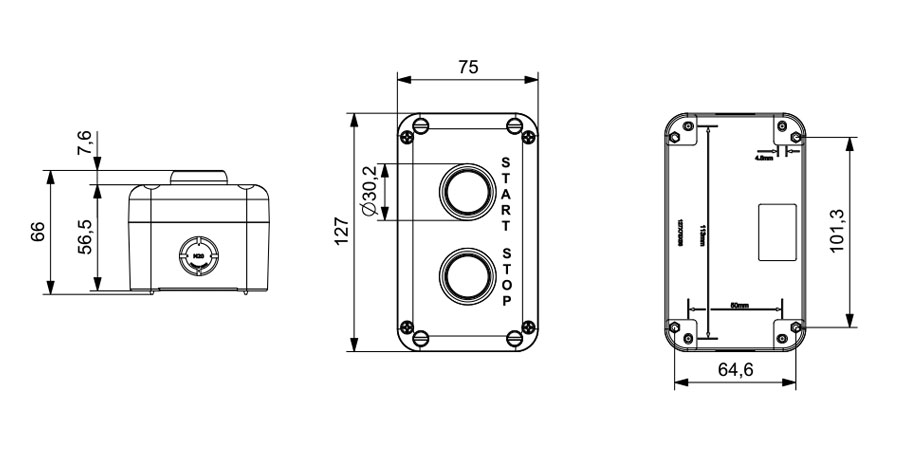

Single	65x55x33
Two	100x55x53
Three	134x55x53
Eight	305x55x53
Screw Size for Wall Mounting	M3.5 mm Insertion of screws directly through base cover
Temperature Range	Long term exposure to temperatures above 700 C should be avoided. No significant change in impact strength is noticed up to -200 C.
Degree of Protection	IP 65 for Push Button Enclosure with Indicators & Actuators
