SR.NO | PARAMETER | RATING | RATING |
---|---|---|---|
1 | CAT Number | LY2EC00 | LY2FC00 |
2 | Product Name | Push Switch Black | Push Switch Black |
3 | Switch Type/ Socket type | Push Switch | Push Switch |
5 | Rated Operational Voltage | 250V AC | 250V AC |
6 | Rated Frequency | 50 -60 Hz | 50-60 Hz |
7 | Rated Operational Current |
0.75 A -250 V AC/ 50-60 Hz |
0.75 A -250 V AC/ 50-60 Hz |
8 | Rated Wattage | 15 W | 15 W |
9 | Dielectric/ h. V. Test voltage | 1.5 KV for 60 Sec | 1.5 KV for 60 Sec |
10 | Insulation resistance at 500v dc | > 1M Ω | > 1 M Ω |
11 | mV Drop | < 120mV MAX | < 120mV MAX |
13 | Operating force | Less Than 750 gram | Less Than 750 gram |

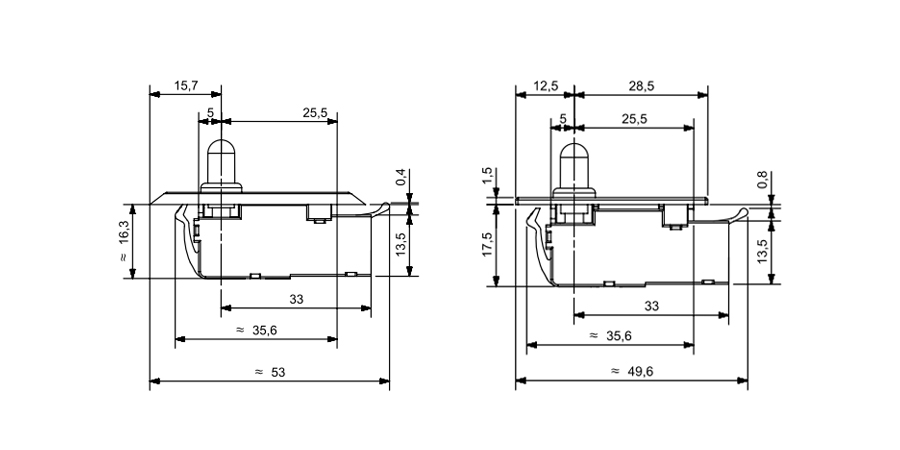

15 | Mounting | 9.2 x35 mm @T1.5 Max | 9.2 x35 mm @T1.5 Max |
16 | Quick terminal connection | L 4.75X W3.5 xT0.5 | L 4.75X W3.5 xT0.5 |
17 | Operating temperature | -20° C to 55° C | -20° C to 55° C |
18 | Application | Refrigerator, Appliance & Industrial | Refrigerator, Appliance & Industrial |
19 | Colour | Z Black (As per customer requirement) | Z Black (As per customer requirement) |
20 | Approvals |
IP20 With Sleeve/ Boot |
IP20 With Sleeve/ Boot |

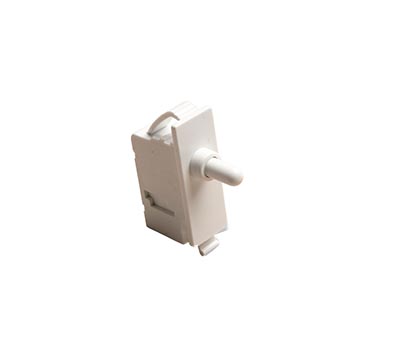

Push switches by Esbee for white goods are available in white and black color which can be further customized as per the requirement of the customer. These push switches are used in household appliances such as washing machine lid switches or in refrigerators.
The circuits are turned on and off using these push switches. Door lid switches are commonly used in household equipment like refrigerators and washing machines. These switches are opened and closed by an outside push. Push switches manufactured by Esbee have undergone quality control, certification, and approval processes. Since 1985, Esbee Electrotech LLP has been producing Lid switches for white goods (home/commercial appliances).
The product description table includes the technical specifications of push switch. The following are some of the additional standout characteristics of Esbee Electrotech Push Switches:
Every product made in Esbee Electrotech is industry approved, goes through a dependability check for life cycle, and has every stage of production and export quality examined.
Naturally, we offer clients to have our products altered to their needs and specifications. These lid switches are often "made to order." For push switches, the following modifications are possible:
- A change in the color of the push switch.
- The shape or size specifications for the door lid switch.
In addition to the industry approvals, we verify the product quality at every level. Prior to export, we also check the product's quality, leading to best practices for maintaining the quality of any product.
Since we value devotion to both our clients and to ourselves, we never sacrifice our morals in the name of profit. We are firm believers of high-quality products and client satisfaction.
Note: The parameters, information given, and product specifications here are true to every unit of the product.
