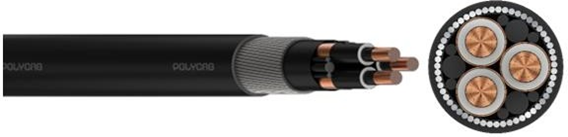

These includes 600/1000 V and 1900/3300 V low voltage and medium voltage armoured cable confirming
to the construction and performance as per BS 5467. These cables are suitable to use in fixed installations
in industrial area, building or similar application.
These cables are available in single and multicore with maximum operating conductor temperature of
90˚C and maximum short circuit conductor temperature 250˚C.
Technical advantages:
- Conductor: High conductivity annealed plain stranded copper conductor produced from state-of-the art
Contirod line.
- Insulation: In-house developed high insulation resistance cross-linked polyethylene thermoset insulation
or ethylene propylene rubber.
- Bedding: A protective barrier created between insulation and armour by extruded layer of polymeric
material.
- Armour: A steel wire or aluminium wire is provided to allow the cable to withstand mechanical stresses
to which it is exposed.
- Sheath: In-house developed PVC compound to withstand mechanical abrasion while in use.
The construction based on the application and requirement of the user against BS 5467
