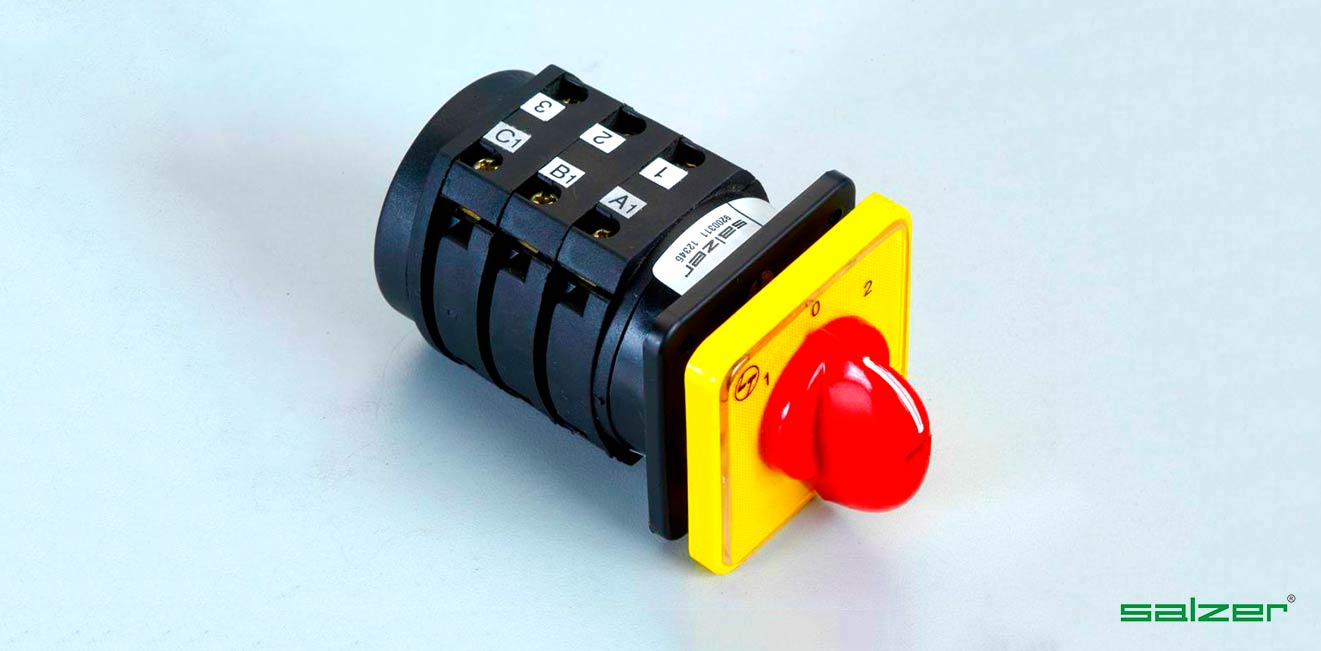

Cam operated Rotary Switches
Introduction
The offered CAM operated rotary switches are used to make or break operation in a sequential way by rotating the switch to different positions.
The basic operating mechanism of Cam Switch is required to suit intended application coupled with “Quick-Make”, “Quick-Make-Quick-Break” and “Spring Return” operating mechanisms are offered to cover wide range requirements.
Detail Decription
CAM switches are suitable for AC as well as DC switching applications. In the AC switch range, we offer open terminals, touch-proof, rear termination, side termination and screw less terminals. We also offer versatile mountings. The D series switches are designed for DC switching applications. These Switches are constructed using snap action mechanism which provides "Quick Make Quick Break" of the contacts which is essential for DC switching.
Specifications
- AC switch range: 6-400 AMPs
- Touch proof, rear termination, side termination and screw less terminals
- Mountings: Standard Front Panel, Rear, 22.5 mm dia., Din rail, Mix & Match, Center Key lock, Pad Lock & Door Interlock switches
- Wide range from (15X15 mm) up to (150X150 mm)
- Breaker Control Switches: 25 / 32 Amps
- Spring return to Neutral, Memory Feature & Sequential Lock
- DC Switch Range: 16-500 Amps up to 250 Volts DC
